Install an AltoReach device

  • Install the AltoReach device on a pole or wall with clear line of sight (LoS) between linked devices
  • The scan range of the device indicates how close to boresight devices must be installed in order for a link to form.
    • The AP90 has a scan range of 90 ̊ azimuth and 50 ̊ elevation.
    • The S150 has a scan range of 4 ̊ azimuth and 4 ̊ elevation.
    • Use the aiming tool to optimize the signal once a station is connected.
    • You can also download the STEP file for a 3D printable aiming scope, which attaches to the device and facilitates aiming.
  • Power source:  For outdoor use, the 4 Port 2.5G PoE switch (Altowav Model AX-PSW-OD-4AT-4C25) is recommended. The outdoor PoE switch can provide power for up to four connected devices. If weatherproof enclosure is available on site and power for only one device is required, the provided 24 W indoor PoE injector can be used.

    If a customer-supplied switch is used: Make sure the switch supports LLDP and that it is enabled.

To install the AltoReach device:

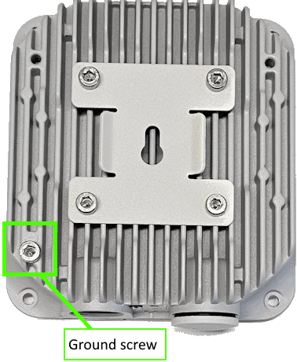

  1. Attach a ground wire to the ground screw.

  2. Local codes determine whether grounding is required or optional.

  3. Securely mount the device on a pole or wall with clear line of sight (LOS) to other AltoReach radios. Install the devices as close to boresight as possible.
    • Use the mounting bracket (Model number AX-AR-PREC-MT) for a secure mount.
  4. Connect to PoE:
    1. Using the provided IP67 cable gland, install Cat6 cable into the ETH0 Ethernet port of the AltoReach device and the other end into a PoE injector/switch.
    2. Power up the PoE injector/switch.
  5. Verify power.

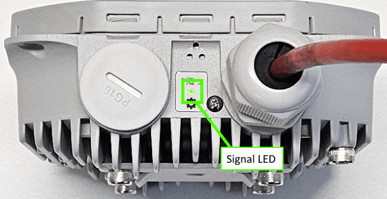

    The Signal LED flashes with a fast blink speed while the AltoReach device is powering up.
