Configure the IP address

All AltoReach devices default to a static IP of 192.168.0.1. You should change the IP address before establishing a link, to ensure that you access the correct radio during maintenance activities. Radios can be configured to use an alternative static IP address, or configured to be DHCP clients and have their IP address assigned by an upstream DHCP server.

1. Log into the AltoReach device as described in Connect to the AltoReach device.

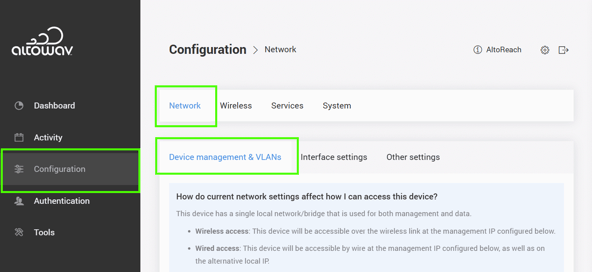

2. In the WebUI, click Configuration.
3. Click Network.
4. Click Device management & VLANs.



5. Do one of the following:
   • Change the static IP address of the radio:
     1. For IP address, type the new static IP address for the radio.
     2. For Netmask, change the netmask if necessary.
     3. For Gateway, type the IP address of the default gateway.
     4. For DNS servers, type the IP addresses of the primary and secondary DNS servers.
     5. Click Save Now.



   • Configure the radio as a DHCP client:
     1. For Management IPv4 mode, select DHCP client.
     2. Click Save Now.
