Devices can be assigned to a network at the same time that their connection request is accepted, as described in Accept connection requests from new devices. You can also assign devices to a Network after they have been accepted, and can remove devices from a Network and add them to another Network.
Only AltoPlex distribution nodes (DNs) and K60 hubs are added to Networks. Client nodes and remotes inherit the Network from the DN or hub they are connected to.
-
Open the AltoCommand WebUI:
In your browser's address bar, type:
https://hostname
where hostname is the fully qualified domain name of the AltoCommand server.
-
Log into the WebUI as a user with admin privileges.
The default username is admin
The default password is admin

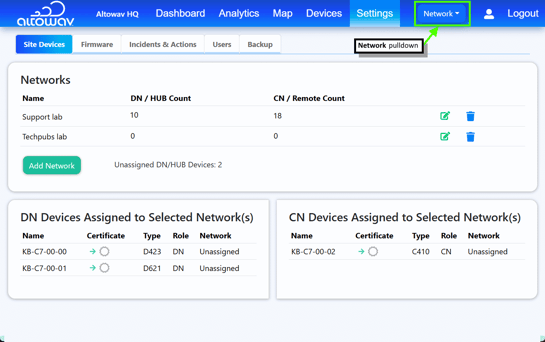

- Click Settings > Site Devices.
In the Site Devices page, devices displayed in the DN Devices Assigned to Selected Network(s) and CN Devices Assigned to Selected Network(s) pane are filtered based on the selection in the Network pulldown. See Filter displayed information based on Networks for further information.
- In the Networks pane, click the Edit icon ().

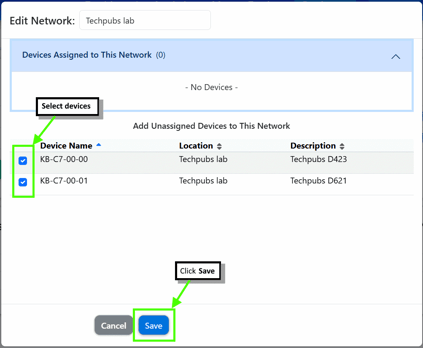

The Edit Network dialog opens.
- Select unassigned devices that should be added to the Network and click Save.
If the device you want to assign to the network is not available, it may be assigned to another network. Unassign it from that network first before attempting to assign it to this network.
